Cabcool 802U Dual 80mm USB Powered Cabinet Cooling Kit
DOWNLOAD KIT SPECIFICATION SHEET
Cooling Unit includes the following:
This Dual 80mm USB version of our Cabcool is a great selection if you just want a no nonsense easy to install kit to keep your stuff cool.
To use this kit you will need access to a USB port, the fan will switch on when the device is powered.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.
Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.
Also available in a Single 120mm USB version.
The dual 80mm fan bracket is (L) 210mm (H) 110mm x (W) 3mm (~8.25"x4.25"x.125") in size
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 175mm x 85mm (~6.9"x3.4") in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be set to blow into or out of the cabinet depending on your needs.

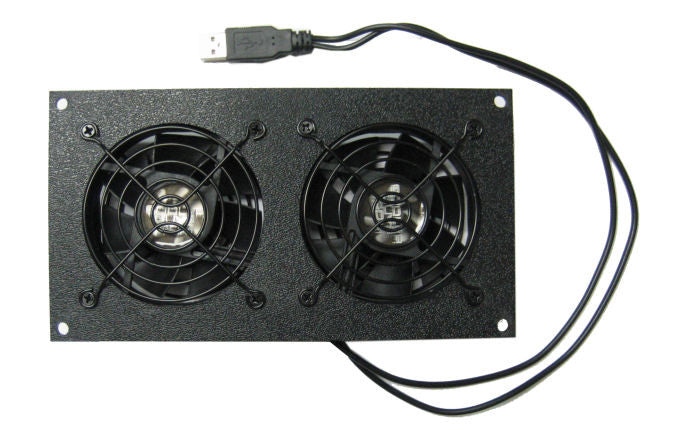

(1) Set of Dual 80mm component cooling fans with USB connection
(1) Black Acrylic Fan bracket (L) 210mm (H) 110mm x (W) 3mm (~8.25"x4.25"x.125")
(2) Black 80mm fan grill
(8) Fan Screws
to attach grill(s)
Pack - 4" Nylon Multi-Purpose Tie Black
(4) 1/2" black Cabinet screw(s)
All necessary screws, cables, and fasteners to complete the unit are included
Completed dimensions: 8 x 4.25 x 1.25 inches
Cut out size: 6.9 x 3.26 (175 x 83mm)
Rated Voltage: 5 Volts
Tail: 16 inch /Dual
Fan Speed: 1500 +/- 10% RPM
Noise Level: 19.7 dBA
Bearing: Dual Ball Bearing
Life Hours: 50,000 hrs
General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
Be sure to Install 80mm finger grills on the outside of the bracket. Extended side out so as not to press on fan. (See Picture)
This kit can also be used with the coolerguys USB Powered Programmable thermal Controller with LED Display
This is a DIY kit and some assembly and installation is needed.
We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
