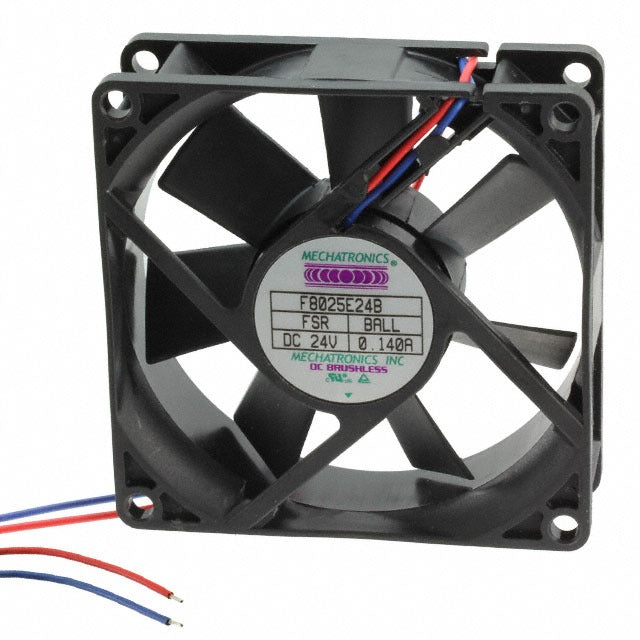

Mechatronics 80x80x25mm 24VDC Fan F8025E24B-FSR
840556077735
Upgrade your cooling performance with the Mechatronics F8025E24B-FSR 80x80x25mm 24VDC Fan, engineered for reliable airflow in compact spaces. Delivering 46 CFM at 3,600 RPM with a low noise level of just 35 dBA, this DC fan combines efficiency and quiet operation. It features a durable UL94V-0 PBT impeller and frame, available in flanged or ribbed style, and is protected by thermal safeguards. Designed with either ball or sleeve bearings, it ensures long-term performance for industrial, electronics, and automation systems. The fan connects via AWG 24 UL1007 lead wires and operates at 24V DC / 140mA, making it ideal for various 24V cooling applications.
PRODUCT SPECIFICATION:
Fan Size: 80 x 80 x 25 mm
Rated Voltage: 24V DC
Current: 140mA
Fan Speed: 3,600 RPM
Air Volume: 46 CFM
Max. Static Pressure (H20): 5.25mm
Sound Noise: 35 dbA
Connection: AWG 24, UL1007 lead wires
Bearing option: ball bearing or sleeve
Construction: UL94V-0 PBT impeller & frame
Frame: flanged or ribbed
Protection: thermal
Weight: 82g
