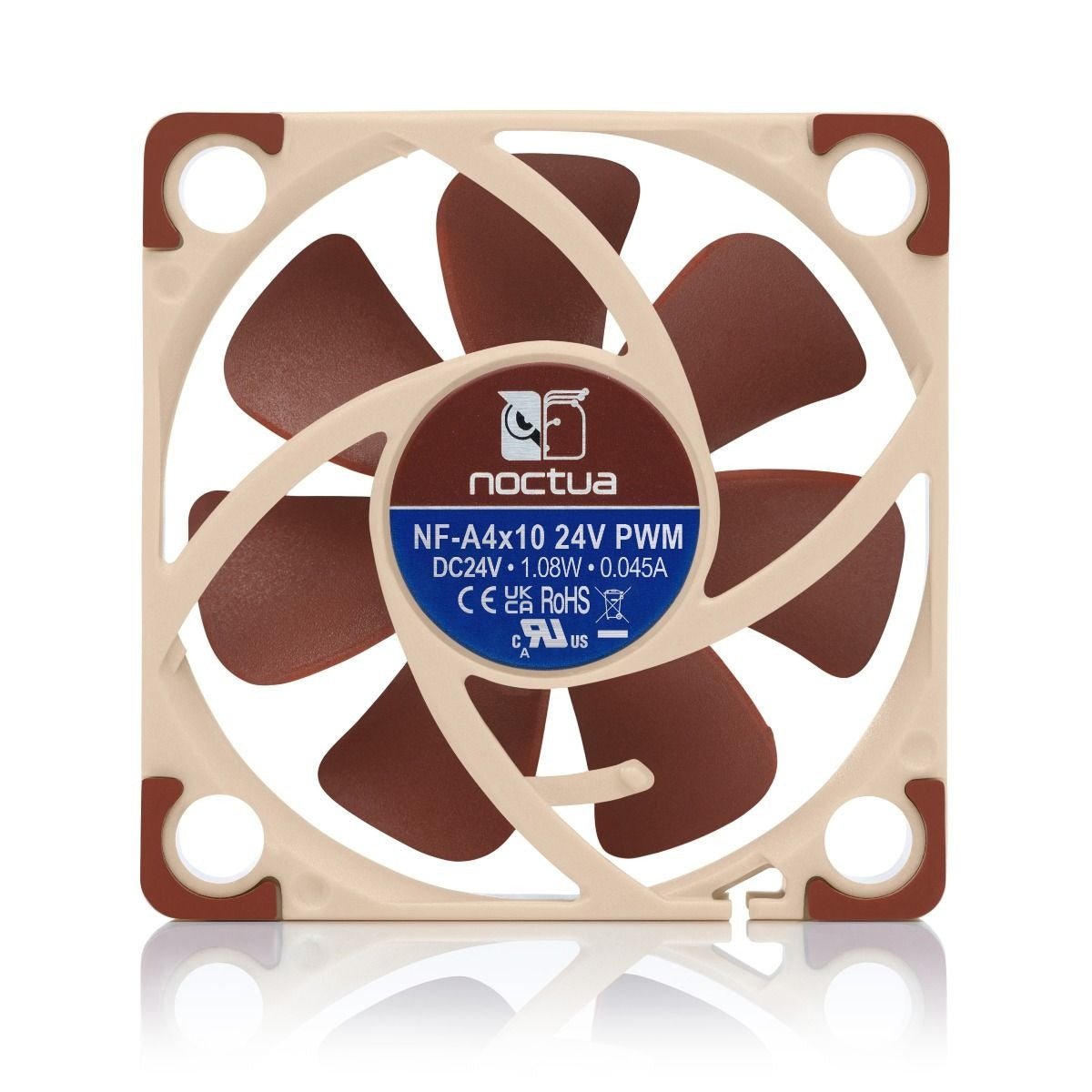

Noctua 40x40x10mm 24V PWM Fan NF-A4x10
840556077859
The Noctua 40x40x10mm 24V PWM Fan NF-A4x10 offers powerful and quiet cooling in a compact design. With a high-speed 5000 RPM motor and advanced blade geometry, it delivers efficient airflow of 8.9 m³/h while maintaining low noise levels at 19.6 dB(A). Its durable SSO2 bearing and fibre-glass reinforced PBT frame ensure long-lasting performance with an MTBF over 150,000 hours. Designed for precision cooling, it includes multiple adapters and anti-vibration mounts to fit various setups easily. Ideal for tight spaces, this fan balances excellent cooling power and silent operation effectively.
FAN SPECIFICATION:
Size: 40x40x10 mm
Mounting hole spacing: 32x32 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Material: Fibre-glass reinforced PBT
Rotational speed (+/- 10%): 5000 RPM
Airflow: 8,9 m³/h
Acoustical noise: 19,6 dB(A)
Static pressure: 1,95 mm H₂O
Input power (max.): 1,08 W
Max. input current: 0,045 A
Operating voltage: 24 V
MTTF: > 150.000 h
Scope of delivery:
- NA-AC9 4-pin molex to 2-pin adaptor cable
- OmniJoin™ adaptor set
- NA-EC1 30cm extension cable
- NA-RC8 Low-Noise Adaptor (L.N.A)
- 4x NA-AV3 anti-vibration mounts
- Fan screws
Warranty: 6 years
