Coolerguys Pro-Metal Single 120mm USB Fan Kit with LED Programmable Thermal Controller: Cabcool1201-M-USB/LED

$ 49.95

Go to Cart

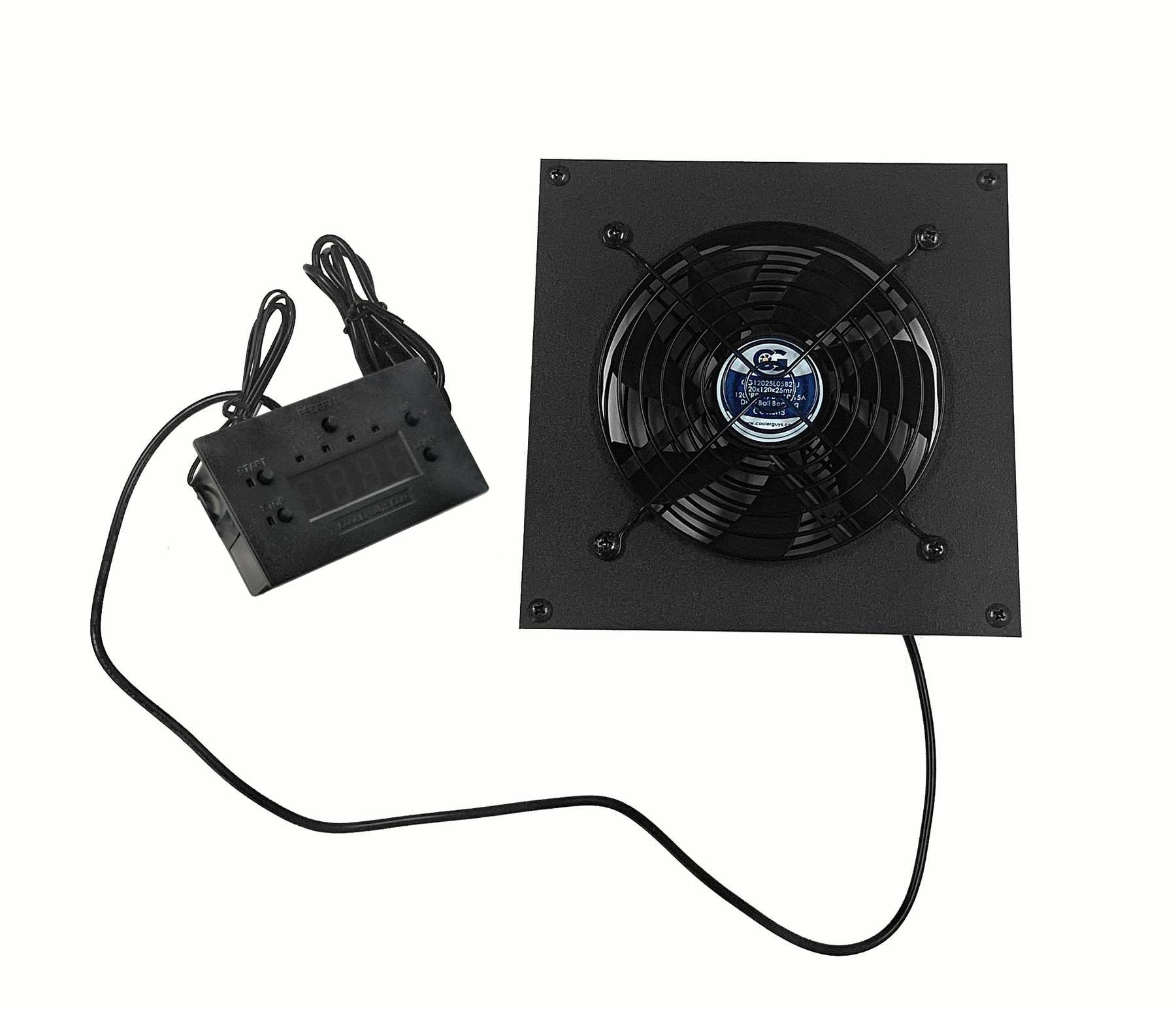

Cabcool Pro-Metal Single 120mm USB Fan Kit with LED Programmable Thermal Controller: 1201-M-USB/LED

This 120mm USB version of our Cabcool also includes a LED Programmable Thermal Controller. Gives precise control of the temperature settings for fan on/off settings.

To use this kit you will need access to a USB port.
It's been tested and will work with popular devices like Cable & Satellite Boxes as well as most common game consoles like the Nintendo Wii, Xbox 360, and Playstation 3.
Also it's a great addition to a closed computer cabinet so you can exhaust the hot air that is created by the computer whenever it is powered on.

The single 120mm fan mounting bracket included is (L)160mm x (H)160mm x (W)3mm in size (~6.25"x6.25"x.125")
It can be mounted on any side of a cabinet, where room permits, by cutting a hole 130mm x 130mm (~5.1"x5.1") in size
Insert completed cooler assembly in hole and attach to cabinet with appropriate screws.
Fan(s) can be set to blow into or out of the cabinet depending on your needs.

Cooling Unit includes the following:

All necessary screws, cables, and fasteners to complete the unit are included.

Fan Specifications:
Dimensions 120x120x25mm
Voltage: 5VDC
Startup Voltage: 3.5V
Operating Range: 3.5V-5.5VDC
Operating Temperature Rangs: -10℃— +55℃
Current: ≦0.23A / 1.15W
Max Static Pressure: 1.85mmH2O
Connector USB
Tail 24 inches
RPM: 1200 +/- 10%
Air Volume: 44 CFM
dB: 19.7
Bearing : Dual Ball
Life Hours: 50,000 @ 40C

Note: This is a DIY kit and some assembly and installation is needed.

General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)

All Coolerguys Cooling Solution Kits are covered by a 3 year limited warranty. See our Terms and condition for additional information.
