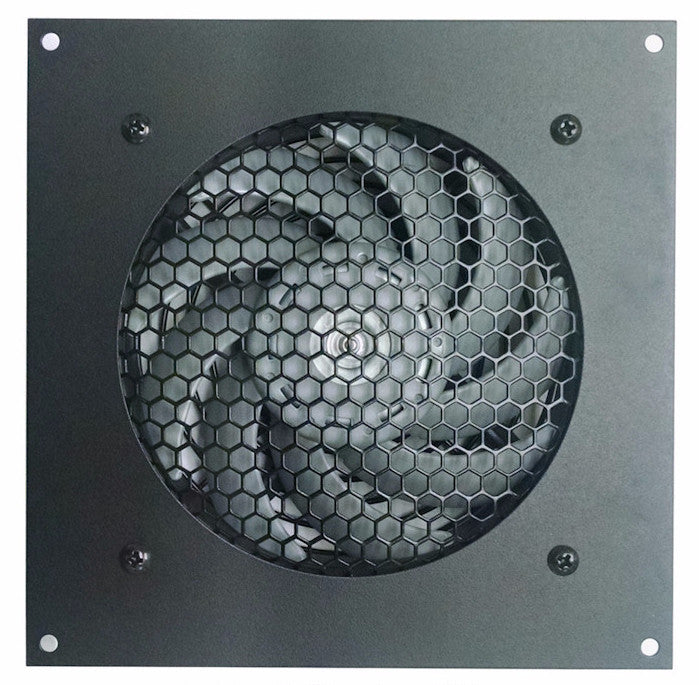

Coolerguys Single 120mm Fan Cooling Kit with Programmable Thermal Controller GT Series
This particular *kit is for a single fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!
This fan can move 46 cubic feet (WxHxD) of air per minute (CFM) which is good for 1-2 components (up to 10 cubic feet of space with 1 shelf), this is just a general rule of thumb and it assumes you have adequate space for air to flow in from, and ventilation between shelving, we're currently working on an in-depth guide to airflow and cooling however in the meantime if you have questions we're here to help you!
Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in the hole and attach with appropriate screws. The fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can contact us!
(1)**Ultra Quiet & Reliable Nidec GentleTyphoon 120mm 1450RPM Dual Ball bearing Fan
This Dual Ball Bearing Nidec Fan is rated to last 100,000 hours running 365/24/7 (Over 11 years!)
The fan has a 30" long cord if you need to extend this length we have extensions here.
Coolerguys Programmable Thermal Controller with LED Temperature Display
This controller comes with a 32" long waterproof probe, place where you'd like to monitor the temperature, when the temperature reaches the temperature you have programmed as the "On" setting the fan and anything else plugged into the unit will be activated until the temperature falls below the programmed "Off" setting.
It natively supports up to 4 3pin connections (12v only) but can handle more with the appropriate splitters (maximum 3A).
Comes with our shelf mount bracket so you can mount the display if you'd like.
Click here to see our probe replacements & extensions
Temperatures above are (+/- 1° F) / Programmable range of 40F (4C) to 145F (63C) / LED display can be toggled on/off
All necessary screws, cables, and fasteners are included to assemble, install and operate this unit.
If you'd like to add additional brackets and fans to this kit you can find them here, non-thermal controlled kits only have enough ports for the fans which come with it, the standard thermal controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters here
Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?
Check out our recommended installation and finishing items here.
Completed Fan and Bracket Dimensions when assembled using the included parts:
Acrylic & Metal: 6.25" x 6.25" x 1.38" (158 x 158 x 35mm)
Wood: 7.00" x 7.00" x 1.77" (178 x 178 x 45mm)
Acrylic & Metal: 5.00" x 5.00" (130 x 130mm)
Wood: 5.75" x 5.75" (145 x 145 mm)
General Instructions for CabCool Cabinet Cooler Kits (574 kb pdf)
Total Kit Contents:
(1) Coolerguys 100-240V AC To 12V 1A DC Power Supply
(1) Ultra Quiet & Reliable GentleTyphoon 120mm 1450RPM Dual Ball bearing Fan
(1) The bracket of your choosing (Acrylic, Metal or Wood)
(1) Coolerguys Programmable Thermal Controller with LED Temperature Display
(1) Controller shelf mount bracket
(1) ***Black 120mm Honeycomb Mesh Fan Grill
(1) Black 120mm Fan Grill
(8) ***Fan nuts and bolts
(4) #6 - 1/2" black Cabinet screws
*This is a kit and some assembly is required
Fan Speed: 1450 RPM
Operation Voltage: DC 12 Volts
Input current: 0.049 Amp Draw
Operation temperature: -10 to +65 C
Storage temperature: -40 to +70 C
Airflow 45.9 CFM
Noise Level: 21 dBA
Lifespan is based on the operating temperature of 95F (35C)
***Wood Grill does not come with the honeycomb grill or the nuts and bolts, it uses its own screws to mount the fan to the bracket.
We also have kits with a standard pre-set thermal controller without a display as well as with no controller at all (always on, great to use with switched power outlets)
We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
