End of Life

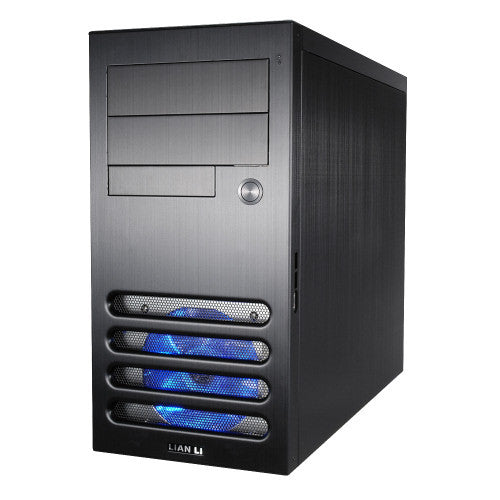

Lian Li PC-A03 Mini Tower Chassic Black
Simple and Stylish
PC-C39 is designed For today's user who want to access more media files, which have the highest quality, and silky look, with more internal space for power user!.
LIAN LI - Excellent Design
"Quality" always is the essence of Lian Li's products, since 1998 when Lian Li offer the first all aluminum chassis to the market. Since then, Lian Li exemplifies the same quality standards, ensuring durability and craftsmanship come first. All products are manufactured in Taiwan and distributed to worldwide markets.
User friendly design is a key concept in Lian Li chassis design. The external structure, user interface, and internal frame have all been tested to meet Lian Lis high quality standards.
PC-A03 has special safety features such as folded edges at strategic points to prevent sharp edges hurting users.
Fine Craft Products
Classic Style, Simple and Clean cut design and shape. Using 1.5mm thick aluminum panels formed with the unique hair-line brushed anodized aluminum finishing.
The idea for creating PC-A03, is to save user's space, and no need to use poor performance hardware, PC-A03 can fit standard M-ATX motherboard, power supply and powerful graphics card.
Lian Li designers consider every detail. The PC-A03 is equipped with anti-vibration clips and grommets on the chassis, to absorb the noises created by vibrating and spinning parts. The EMI spring on the top cover absorbs the vibrations, without interfering with the side panel.
PC-A03 features Lian Li patented Anti-vibration HDD cage, which allow user to fit three of 3.5" HDD. It is easy to use, no tool required, simply using the special thumb screw to secure the anti-vibration rubber ring to the HDD, and slide the HDD into the cage..
There is a 120mm intake blue LED fan fitted in the fornt of the chassis to input cool air through the HDD racks, and feed the cool air to the system, exhausted out by the PSU and a 90mm blue LED fan at the rear of the chassis.
There is a 120mm blue LED exhaust fan at the front of the chassis. The fan is extremely silent and can bring a good volume of air from outside the case.
There is a 90mm exhaust blue LED fan at the rear of the chassis. The fan is extremely silent and can bring a good volume of air from outside the case.
User Friendly Design
- Multi-media port connectors follow international specification standards, with one connector for easy installation.
- Audio supports HD Audio or AC97 Audio. The dual design is for better compatibility options.
- All I/O ports on the right side, allow for easy access.
- Tool-less design for the Optional drive, just slide the drive into the 5.25" bay, and mounting kit will hold the drive in position, user can add screw to the drive for extra security.
- PC-A03's front panel can be easily removed, with all the switches and wires mounted in the chassis, and therefore out of the way.
||188mm x 368mm x447mm (W,H,D)
|Front bezel Material
|5.25" drive bay (External)
|3.5" drive bay (External)
|3.5" drive bay (Internal)
||M-ATX, Mini-ITX (170mm x 170mm)
|System Fan (Front)
||12cm Blue LED Fan @1000RPM
|System Fan (Top)
|System Fan (Rear)
||9cm Blue LED Fan @1500RPM
||USB2.0 x 2, HD+AC97 Audio
